Description

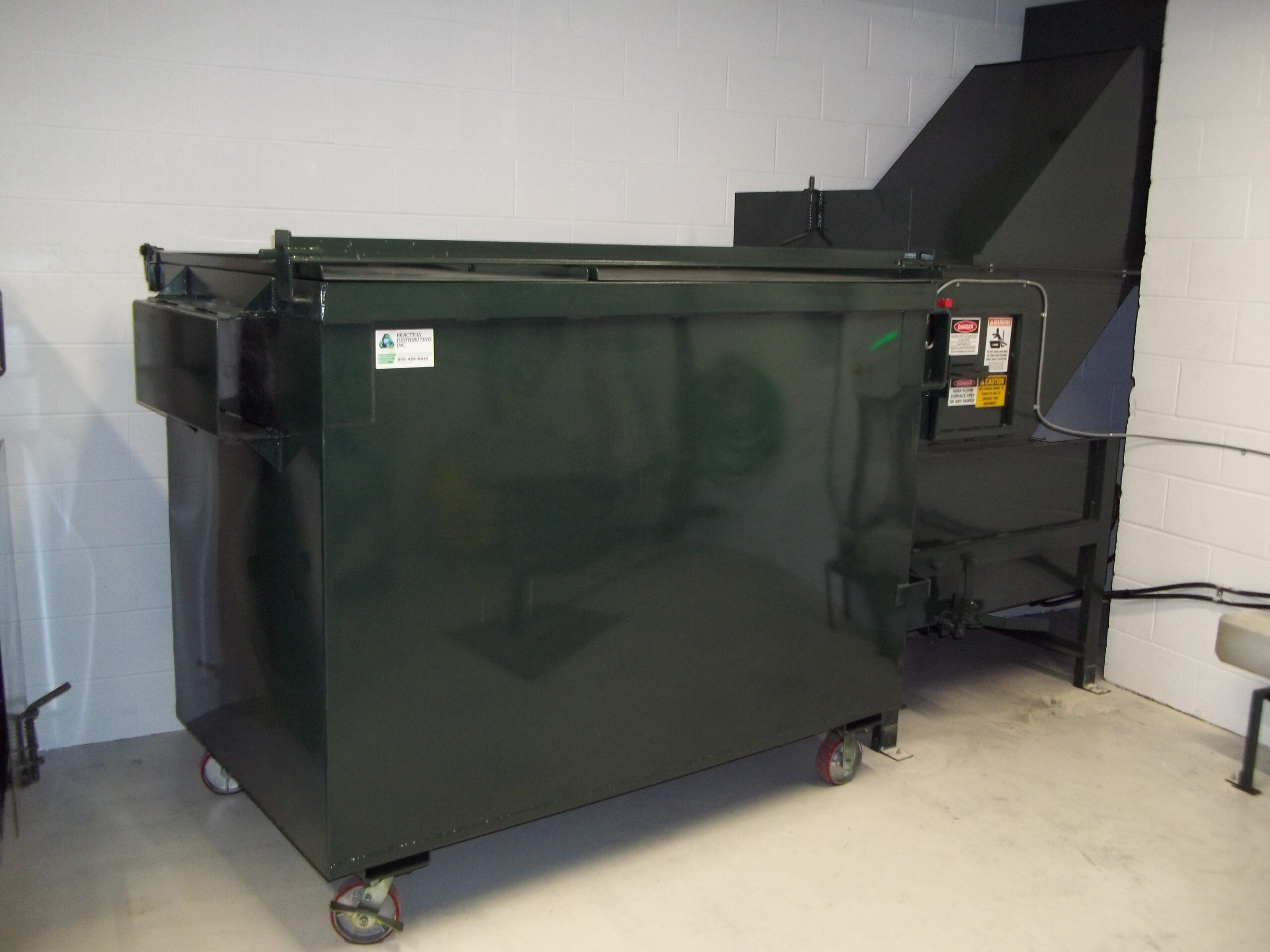

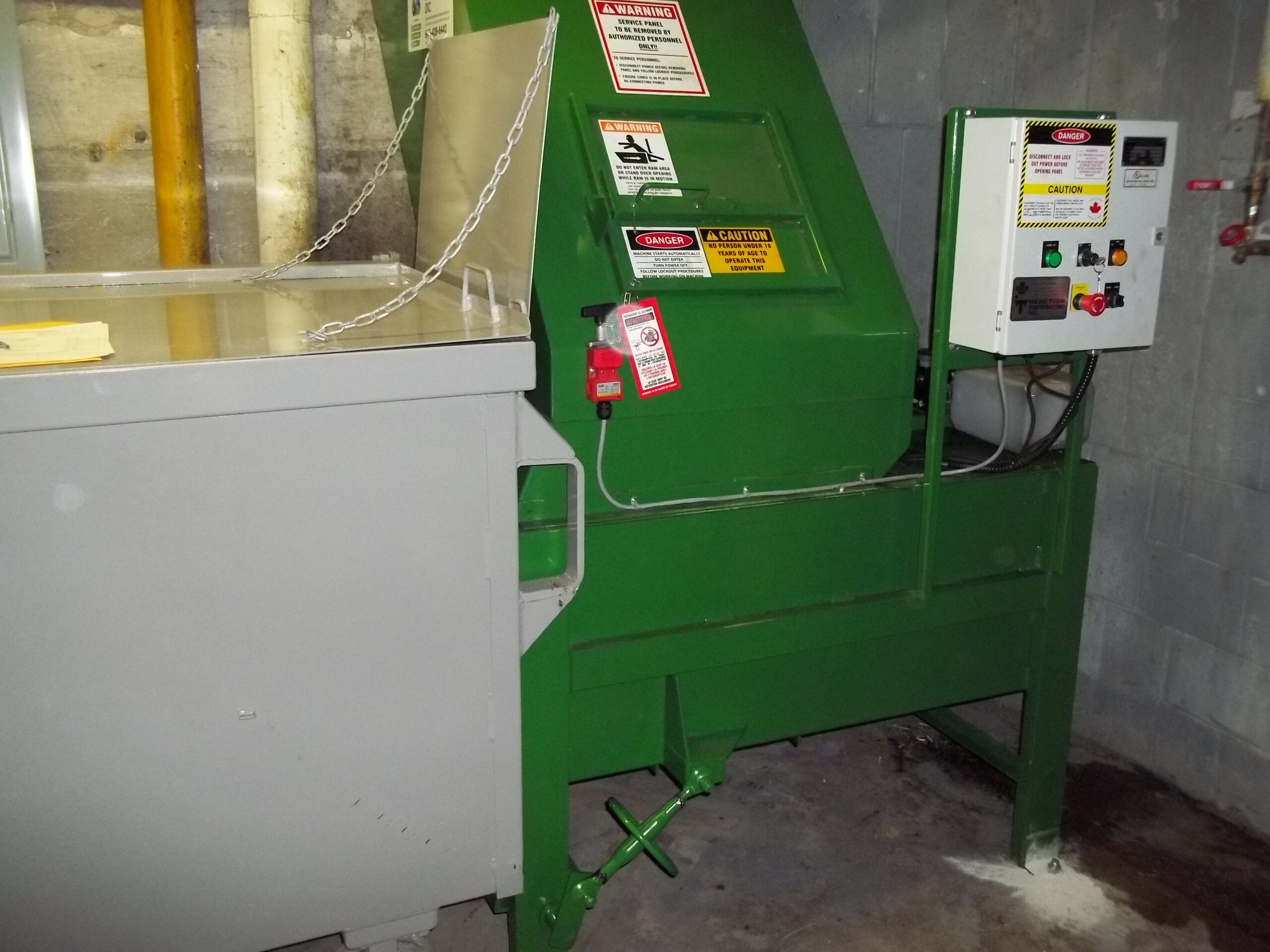

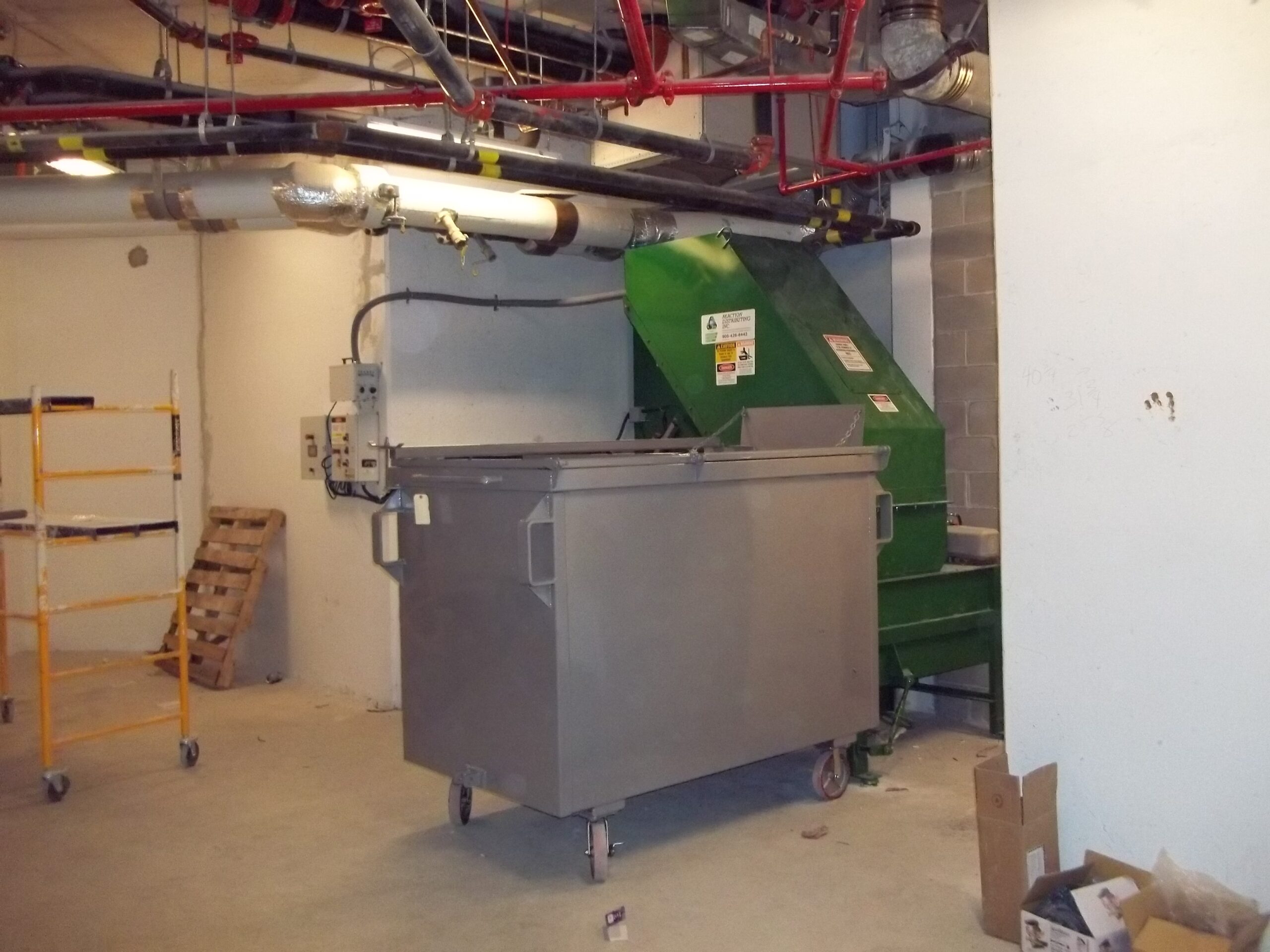

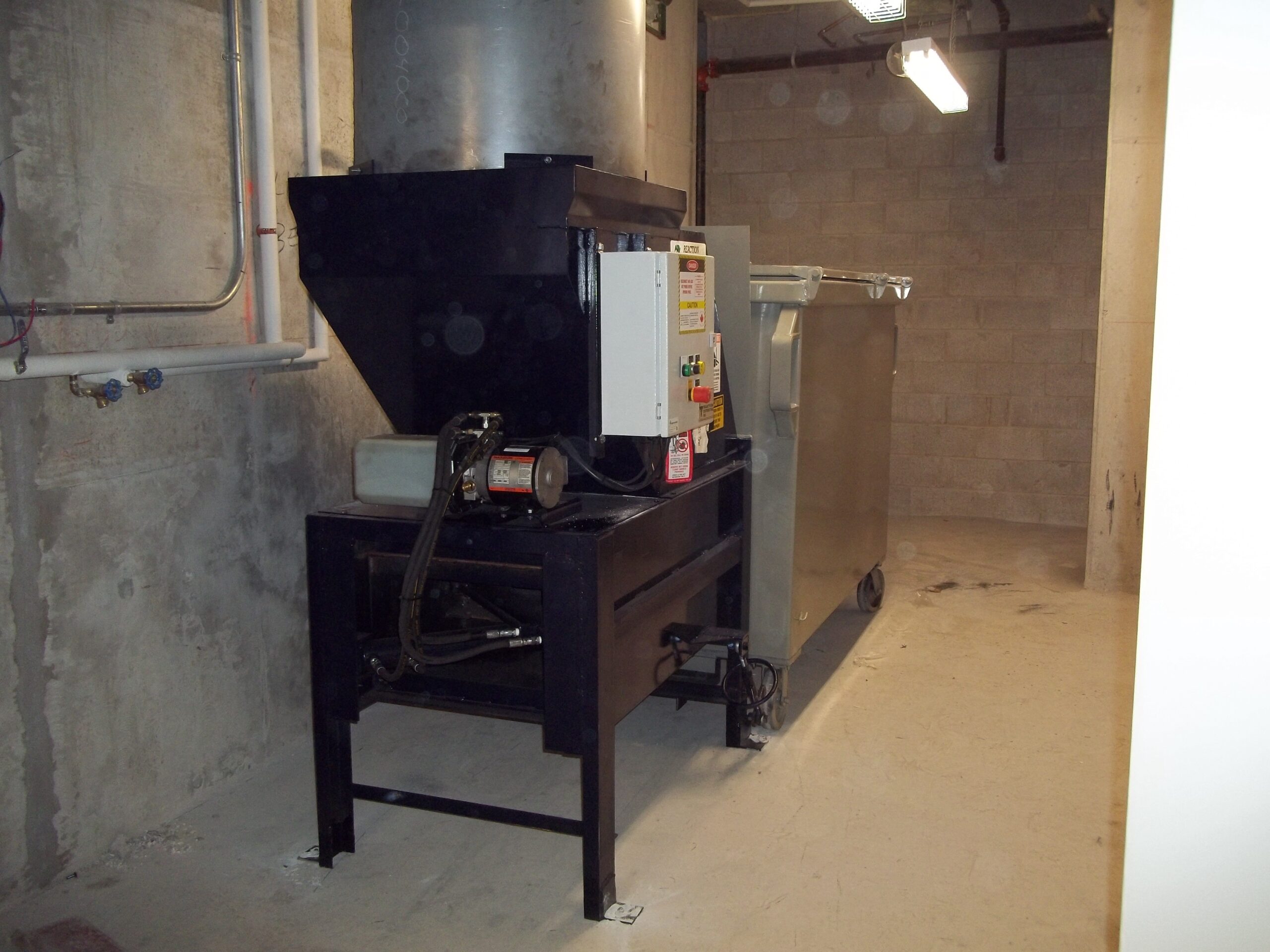

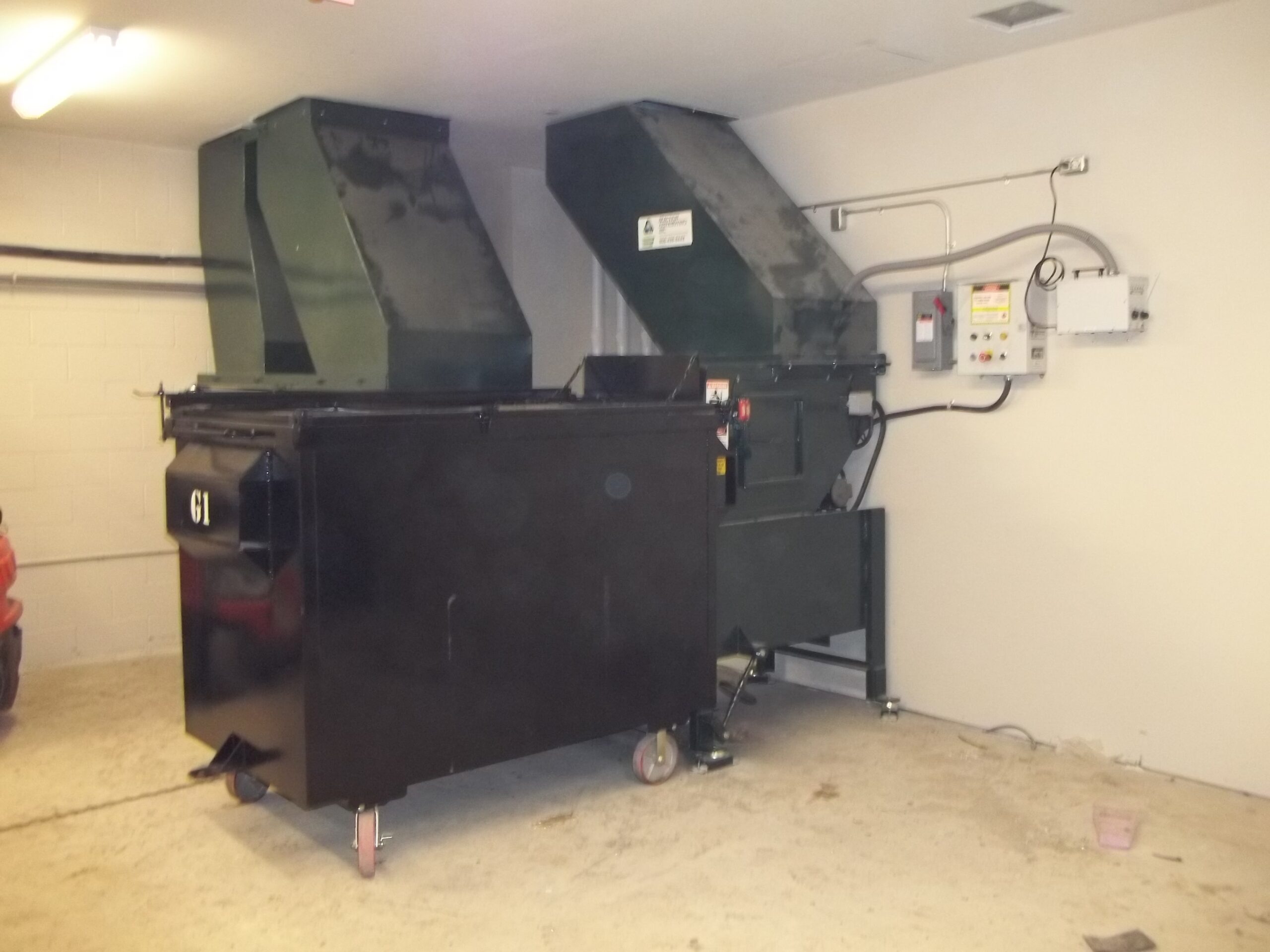

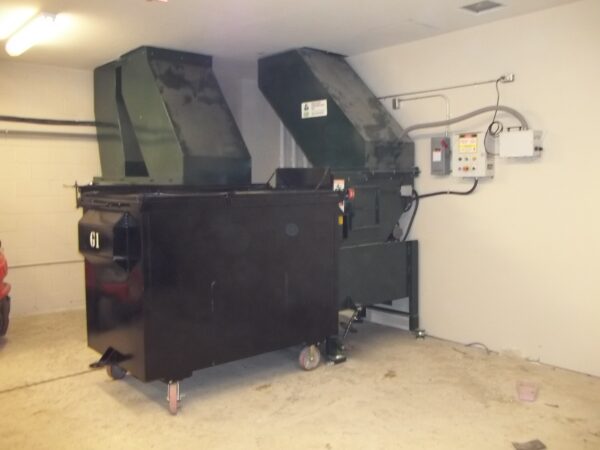

The T-20X stationary compactor has been specifically engineered to be used in multi-unit residential buildings and can be placed under a trash chute or used as a free standing system. It can be coupled with front-end containers or rear packer containers and will accept containers ranging in size from 1.5 to 4 cubic yards. The unit is available as a manually operated unit or when placed under a chute it can be supplied as a fully automated unit that will cycle unattended 24/7. It can also be used with our “tri-sorter and bi-sorter” head assemblies when the waste stream needs to be sorted.
Technical Details
Standard Features
- UL/CSA Approved Design
- Meets/exceeds ANSI Z245.2 regulations
- Meets/exceeds OSHA regulations
- PLC “flex-design” based control systems
- NEMA 4 rated enclosure
- Internal timers prevent system run-on
- Self-diagnostic indicators
- 24-volt controls
- Adjustable multi-cycle timer
- 75% and 100% full light
- Auto-alert maintenance mode
- Heavy duty oil-tight pushbutton controls
- Key lockable start pushbutton
Mechanical Specifications
| T-20X | |
|---|---|
| Charge Chamber Volume | 0.25 |
| Charge Chamber Opening Size | 27″ x 25″ |
| Ram Face Size | 27″ x 15″ |
| Ram Penetration | 5″ |
| Compaction Force Normal | 19,625 lbs |
| Compaction Force Maximum | 23,550 lbs |
| Cycle Time | 25 seconds |
| System Pressure Normal | 2000 psi |
| System Pressure Maximum | 2200 psi |
| Pump Capacity | 2 gpm |
| Motor Size | 1 hp |
| Cylinder Size | 2 x 2.5″ |
| Cylinder Type | Double Acting |
| Ram Face Pressure Normal | 48.5 psi |
| Ram Face Pressure Maximum | 58.1 psi |
| Oil Tank Capacity | 5 gal |
| Shipping Weight | 950 lbs |
Electrical Specifications
| Control System | 110 volt 60 cycle powered by step-down transformer |
| Control Panel | Fully wired. Keyed start button, emergency stop, full lights, reset button, PLC, current sensor |
| Power | 115 volt, single phase |
Dimensions
| A | B | C | D | E | |
|---|---|---|---|---|---|
| T-20X | 52″ | 34″ | 31″ | 25″ | 27″ |
Optional Equipment
- Advance-warning light
- Fluid-filled pressure gauge
- Oil heater
- Odour control system
- Open hopper (for top or dock loading)
- Remote trouble/fill light
- Sorter system
Electrical system upgrades
- System monitor: SCADA panel (add-on panel or integrated upgrade) provides cell-based monitoring of all systems including container fullness, safety circuit devices, container positioning, hydraulic system devices including reservoir fullness, oil temperature and system in-use time
- Remote start/stop station
- Auto-start system (photo-eye or sonic sensor)
- Wireless remote control
- Biometric interface
- HMI based operator interface for tie into building monitoring systems
Hydraulic system upgrades
- Single phase and three phase power units
- Hi-lo hydraulic pumps for reduced cycle time applications
- Regen circuit for improved hydraulic fluid circulation
- Over-sized oil reservoirs to accommodate ancillary devices and improved heat sink
- Oil cooler for high duty cycle applications
- Bio-degradable oil
- In tank oil heater
- Sonic sensors for oil fullness monitoring
- Low temperature oil (as low as -60 Celsius is available)
Compactor Upgrades
- Custom chute systems
- Custom weather enclosures
- Drive-on deck systems (certified up to 20,000 lbs.)
- Tongue and grooved floor designs
- AR plate floors and sides for reduced press head/compactor shell wear
- Pad-less set-up for installation on asphalt
- Custom hydraulic cart tipping systems
- Light curtain-based safety sensors
- Custom steel safety barriers
- Custom hydraulic lift systems
