T-200 Series Stationary Compactors

Category:

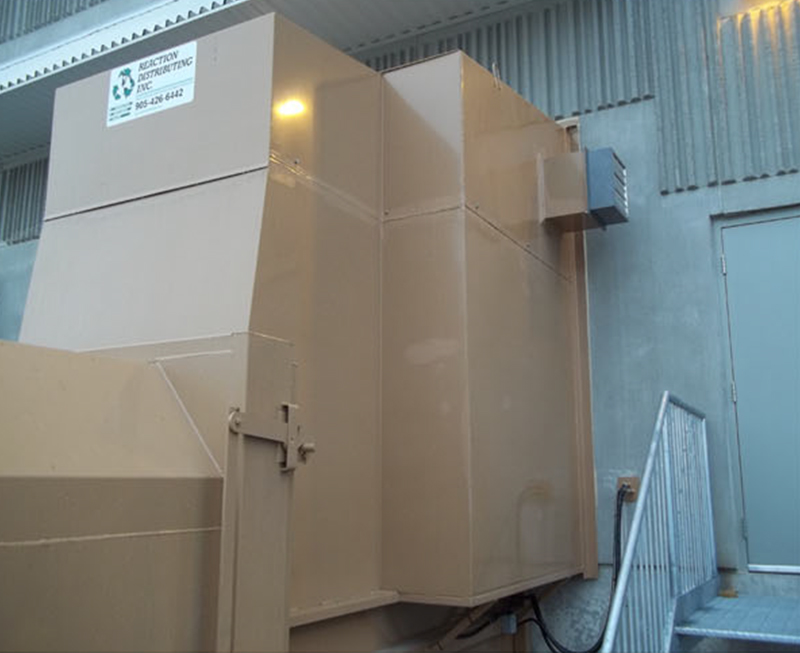

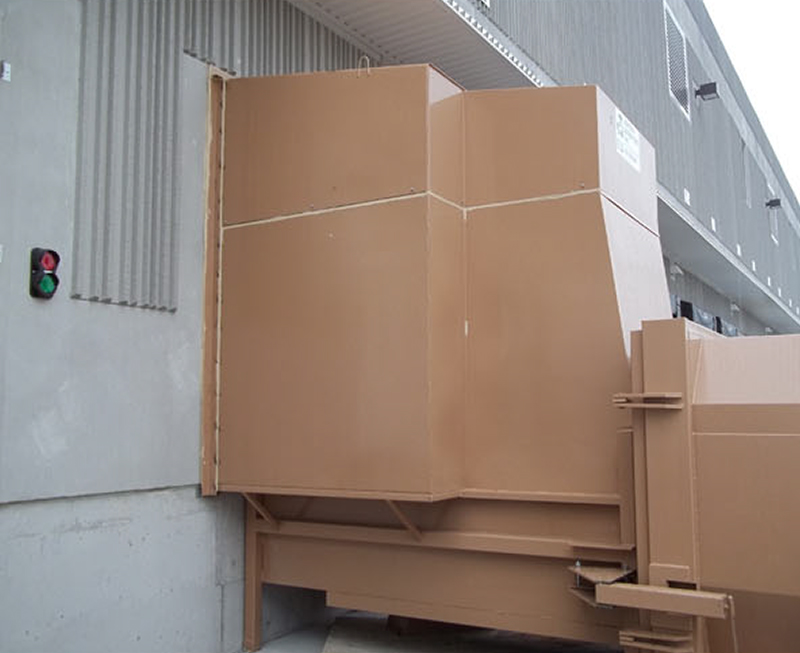

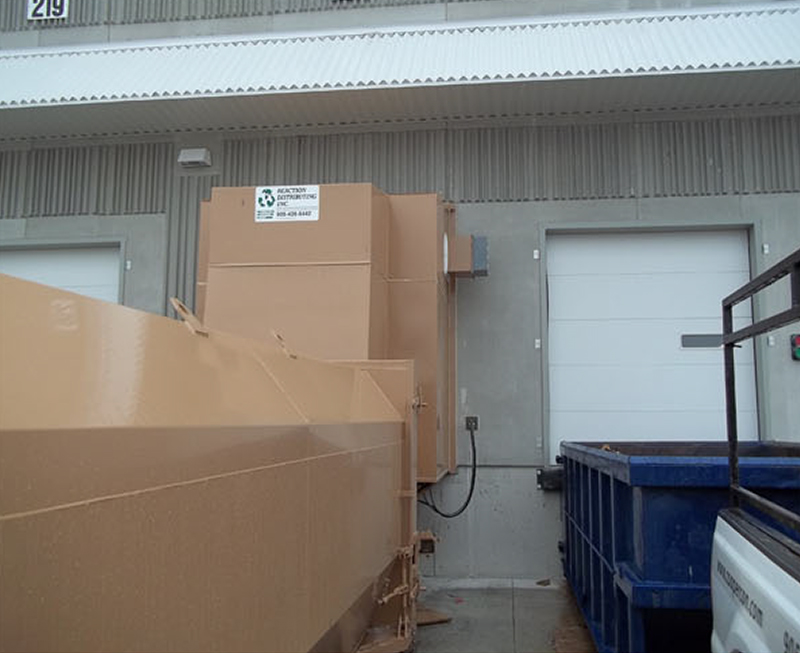

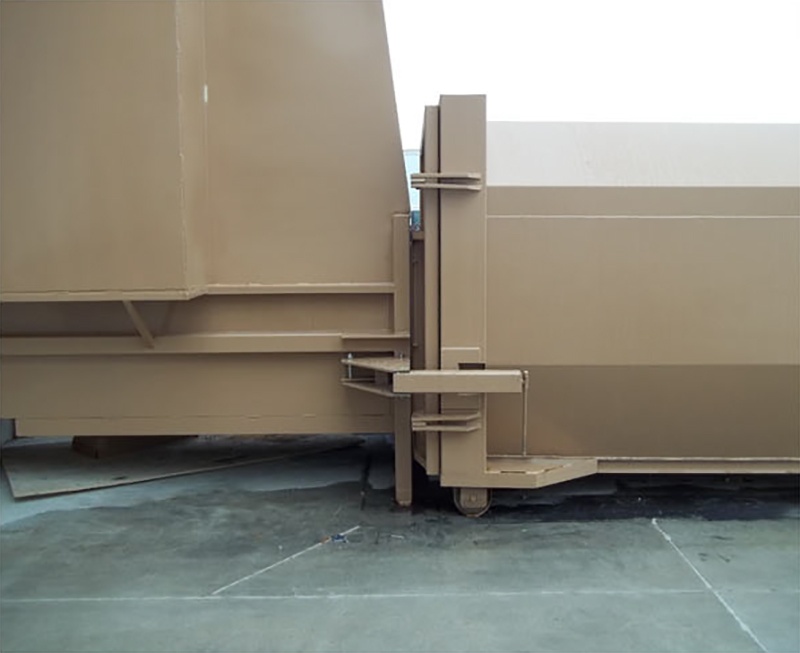

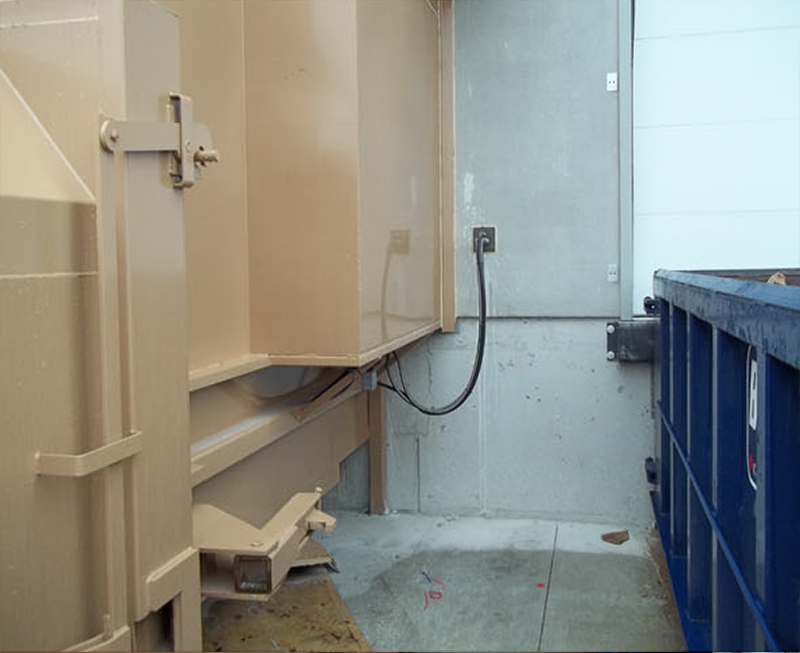

Description

The T-200 series is designed for dry waste applications and is available as a standard duty, heavy duty and extra-heavy duty unit depending on the application. Generally the T-200 standard duty is ideal for the retail environment, the T-200HD for the commercial sector and the T-200XHD for the industrial and municipal sectors. Each system can be customized to suite the client’s needs and can be supplied as part of a 100% turnkey system. Where space is limited, the T-200X model delivers the same benefits as the T-200 unit; but with with an overall smaller footprint.

Learn MoreBook a consultation

Technical Details

Standard Features

  • UL/CSA Approved Design
  • Meets/exceeds ANSI Z245.2 regulations
  • Meets/exceeds OSHA regulations
  • PLC “flex-design” based control systems
  • NEMA 4 rated enclosure
  • Internal timers prevent system run-on
  • Self-diagnostic indicators
  • 24-volt controls
  • Adjustable multi-cycle timer
  • 75% and 100% full light
  • Auto-alert maintenance mode
  • Heavy duty oil-tight pushbutton controls
  • Key lockable start pushbutton

Mechanical Specifications

T200 T200HD T200XHD T200X
Charge Chamber Volume 2 2 2 2
Charge Chamber Opening Size 42″ x 60″ 42″ x 60″ 42″ x 60″ 42″ x 60″
Ram Face Size 27″ x 60″ 27″ x 60″ 27″ x 60″ 27″ x 60″
Ram Penetration 13″ 13″ 13″ 13″
Compaction Force Normal 56,500 lbs 76,930 lbs 113,000 lbs 50,240 lbs
Compaction Force Maximum 64,975 lbs 88,470 lbs 129,950 lbs 55,260 lbs
Cycle Time 63 seconds 63 seconds 73 seconds 63 seconds
System Pressure Normal 2000 psi 2000 psi 2000 psi 2000 psi
System Pressure Maximum 2200 psi 2200 psi 2200 psi 2200 psi
Pump Capacity 10 gpm 10 gpm 10 gpm 10 gpm
Motor Size 10 hp 15 hp 15 hp 10 hp
Cylinder Size 6″0 x 54″ 7″0 x 54″ 2 x 6″0 x 54″ 2 x 4″0 x 42″
Cylinder Type Double Acting Double Acting Double Acting Double Acting
Ram Face Pressure Normal 34.2 psi 46.6 psi 68.5 psi 30.5 psi
Ram Face Pressure Maximum 39.4 psi 53.6 psi 78.8 psi 33.4 psi
Oil Tank Capacity 20 gal 25 gal 75 gal 20 gal
Shipping Weight 4,100 lbs 5,100 lbs 7,500 lbs 4,100 lbs

Electrical Specifications

Control System 110 volt 60 cycle powered by step-down transformer
Control Panel Fully wired. Keyed start button, emergency stop, full light, reset button, PLC, current sensor
Power 208/230/575 Volt, 3 Phase 60 Cycle

Dimensions

Table Diagram

A B C D E
T200 110″ 45″ 63″ 42″ 60″
T200HD 110″ 45″ 6z3″ 42″ 60″
T200XHD 110″ 45″ 63″ 42″ 60″
T200X 110″ 45″ 63″ 42″ 60″

Electrical system upgrades

  • System monitor: SCADA panel (add-on panel or integrated upgrade) provides cell-based monitoring of all systems including container fullness, safety circuit devices, container positioning, hydraulic system devices including reservoir fullness, oil temperature and system in-use time
  • Remote start/stop station
  • Auto-start system (photo-eye or sonic sensor)
  • Wireless remote control
  • Biometric interface
  • HMI based operator interface for tie into building monitoring systems

Hydraulic system upgrades

  • Single phase and three phase power units
  • Hi-lo hydraulic pumps for reduced cycle time applications
  • Regen circuit for improved hydraulic fluid circulation
  • Over-sized oil reservoirs to accommodate ancillary devices and improved heat sink
  • Oil cooler for high duty cycle applications
  • Bio-degradable oil
  • In tank oil heater
  • Sonic sensors for oil fullness monitoring
  • Low temperature oil (as low as -60 Celsius is available)

Compactor upgrades

  • Custom chute systems
  • Custom weather enclosures
  • Drive-on deck systems (certified up to 20,000 lbs.)
  • Tongue and grooved floor designs
  • AR plate floors and sides for reduced press head/compactor shell wear
  • Pad-less set-up for installation on asphalt
  • Custom hydraulic cart tipping systems
  • Light curtain-based safety sensors
  • Custom steel safety barriers
  • Custom hydraulic lift systems
