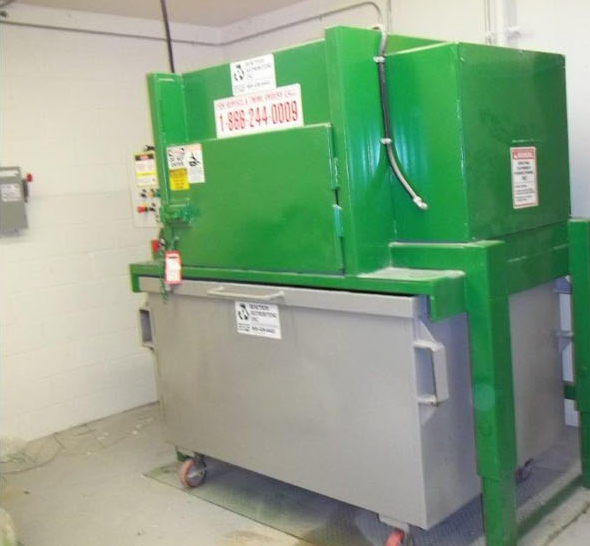

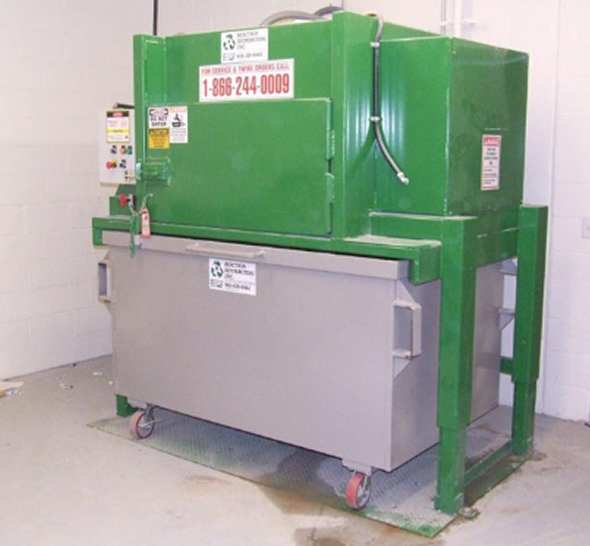

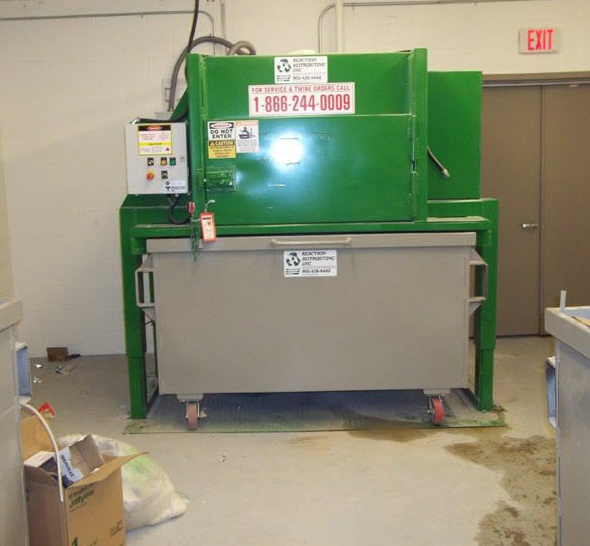

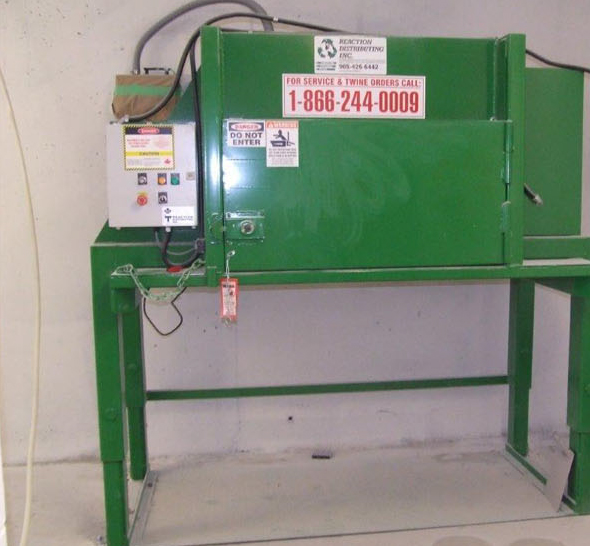

TV-2000 Mini Self-Contained Compactor


The TV-2000-mini is a “front-end” based self-contained compactor that has all of the features of the larger TV-2000; but is specifically designed for small spaces such as on loading docks or inside trash rooms where space is limited. The self-contained compactor will contain all of the waste stream liquids in the front-end style container that is positioned directly under the compactor head. Unlike our other roll-off based “SPH” models, this unit is designed to be dumped by standard front-end style waste trucks. Each compactor is manufactured with a container that has fully welded seams, contains a full liquid sump area and is equipped with side pockets to accommodate the forks of a front-end waste truck. This model is available in a wide range of configurations (front load, and rear load),is available with 2, 2.5 or 3 cubic yard containers; and can be customized to fit our clients individual needs.

Learn MoreBook a consultation

Technical Details

Standard Features

  • UL/CSA Approved Design
  • Meets/exceeds ANSI Z245.2 regulations
  • Meets/exceeds OSHA regulations
  • PLC “flex-design” based control systems
  • NEMA 4 rated enclosure
  • Internal timers prevent system run-on
  • Self-diagnostic indicators
  • 24-volt controls
  • Adjustable multi-cycle timer
  • 75% and 100% full light
  • Auto-alert maintenance mode
  • Heavy duty oil-tight pushbutton controls
  • Key lockable start pushbutton

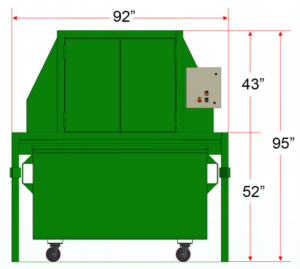

Mechanical Specifications

Overall Height 95″
Load Height 52″
Overall Width 92″
Overall Depth 49″
Shipping Weight 1,845 lbs
Container Capacity 2.5 cubic year
Container Type standard front-end
Container Castors 6″ poly style

Electrical Specifications

Hydraulic 1×4″ diameter cylinder. Compaction force: 18,840 lbs. System pressure: 1,500 lbs/
Control Panel Fully wired. Keyed start button, emergency stop, reset button, PLC, dual current sensors
Power 115 Volt, 1 Phase (20A dedicated service) Standard wall duplex required

Electrical system upgrades

  • System monitor: SCADA panel (add-on panel or integrated upgrade) provides cell-based monitoring of all systems including container fullness, safety circuit devices, container positioning, hydraulic system devices including reservoir fullness, oil temperature and system in-use time
  • Remote start/stop station
  • Auto-start system (photo-eye or sonic sensor)
  • Wireless remote control
  • Biometric interface
  • HMI based operator interface for tie into building monitoring systems

Hydraulic system upgrades

  • Single phase and three phase power units
  • Hi-lo hydraulic pumps for reduced cycle time applications
  • Regen circuit for improved hydraulic fluid circulation
  • Over-sized oil reservoirs to accommodate ancillary devices and improved heat sink
  • Oil cooler for high duty cycle applications
  • Bio-degradable oil
  • In tank oil heater
  • Sonic sensors for oil fullness monitoring
  • Low temperature oil (as low as -60 Celsius is available)

Compactor upgrades

  • Custom chute systems
  • Custom weather enclosures
  • Drive-on deck systems (certified up to 20,000 lbs.)
  • Tongue and grooved floor designs
  • AR plate floors and sides for reduced press head/compactor shell wear
  • Pad-less set-up for installation on asphalt
  • Custom hydraulic cart tipping systems
  • Light curtain-based safety sensors
  • Custom steel safety barriers
  • Custom hydraulic lift systems
