TV-3000 Self-Contained Compactor

Description

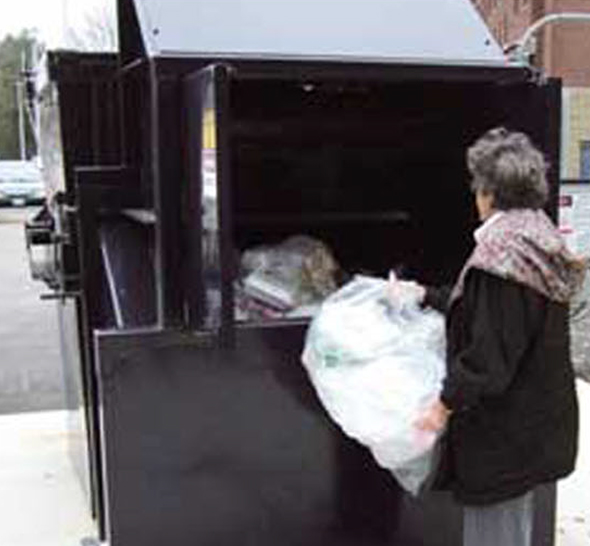

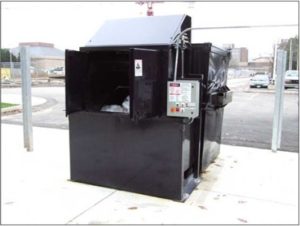

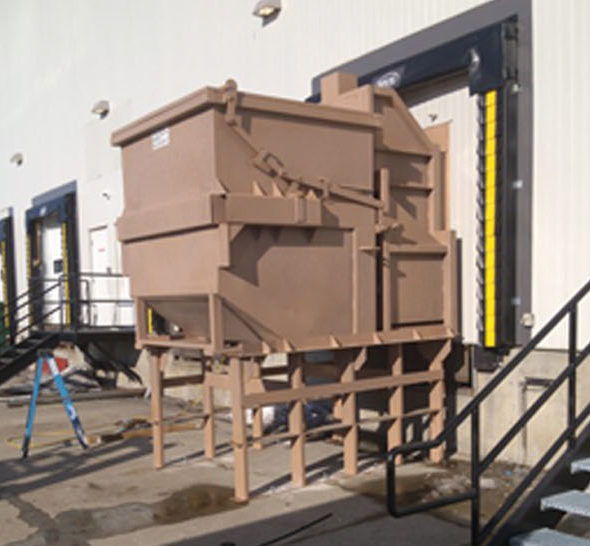

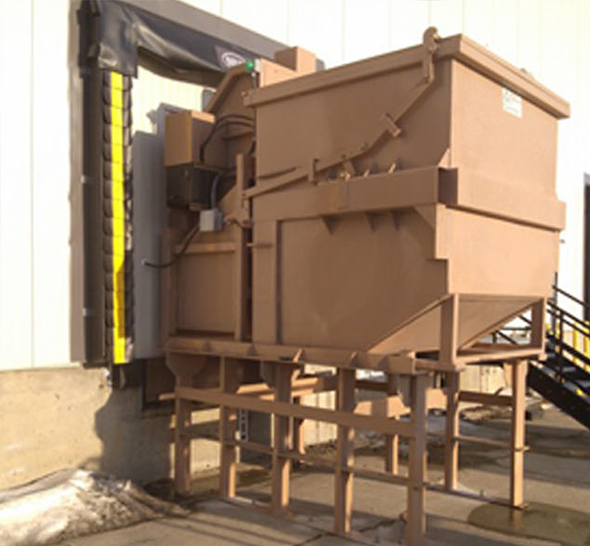

The TV-3000 is a “front-end” based self-contained compactor that is specifically designed for waste streams that contain a large percentage of wet waste. The self-contained compactor will contain all of the waste stream liquids in the front-end style container that is positioned directly under the compactor head. Unlike our other roll-off based “SPH” models, this unit is designed to be dumped by standard front-end style waste trucks. Each compactor is manufactured with a container that has fully welded seams, contains a full liquid sump area and is equipped with side pockets to accommodate the forks of a front-end waste truck. This model has a distinct advantage over the TV-2000 unit in so far as the feed height is only 42″ no matter what size of container is used with it. The unit is available only in a rear feed configuration; but can be equipped with a 4, 6 or 8 cubic yards container.

Learn MoreBook a consultation

Technical Details

Standard Features

  • UL/CSA Approved Design
  • Meets/exceeds ANSI Z245.2 regulations
  • Meets/exceeds OSHA regulations
  • PLC “flex-design” based control systems
  • NEMA 4 rated enclosure
  • Internal timers prevent system run-on
  • Self-diagnostic indicators
  • 24-volt controls
  • Adjustable multi-cycle timer
  • 75% and 100% full light
  • Auto-alert maintenance mode
  • Heavy duty oil-tight pushbutton controls
  • Key lockable start pushbutton

Mechanical Specifications

TV3000-6 TV3000-8
Charge Chamber Volume 1 cu yd 1 cu yd
Charge Chamber Opening Size 33″ x 48″ 33″ x 48″
Ram Face Size 48″ x 34″ 48″ x 34″
Ram Penetration 29.5″ 29.5″
Compaction Force Normal 28,260 lbs 28,260 lbs
Compaction Force Maximum 33,912 lbs 33,912 lbs
Cycle Time 34 seconds 34 seconds
System Pressure Normal 2000 psi 2000 psi
System Pressure Maximum 2400 psi 2400 psi
Pump Capacity 1 gpm/3 gpm 1 gpm/3 gpm
Motor Size 1 hp/3 hp 1 hp/3 hp
Cylinder Size 2 x 3″ 2 x 3″
Cylinder Type Double Acting Double Acting
Ram Face Pressure Normal 17.4 psi 17.4 psi
Ram Face Pressure Maximum 20.8 psi 20.8 psi
Oil Tank Capacity 5 gal 5 gal
Shipping Weight (Head only) 1485 lbs 1485 lbs

Electrical Specifications

Table Diagram

Control System 110 volt 60 cycle powered by step-down transformer

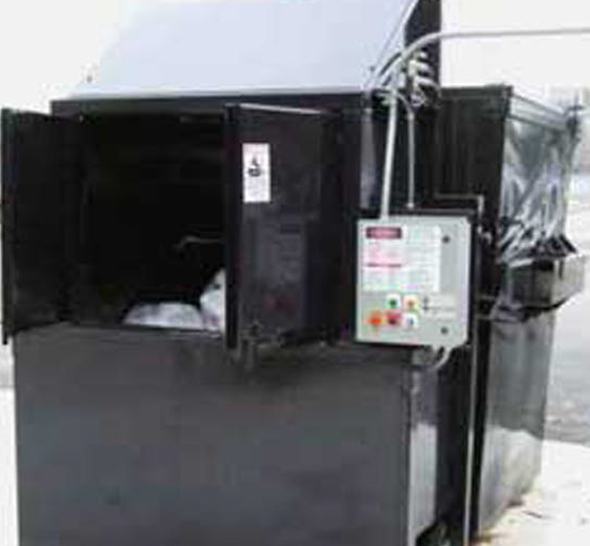

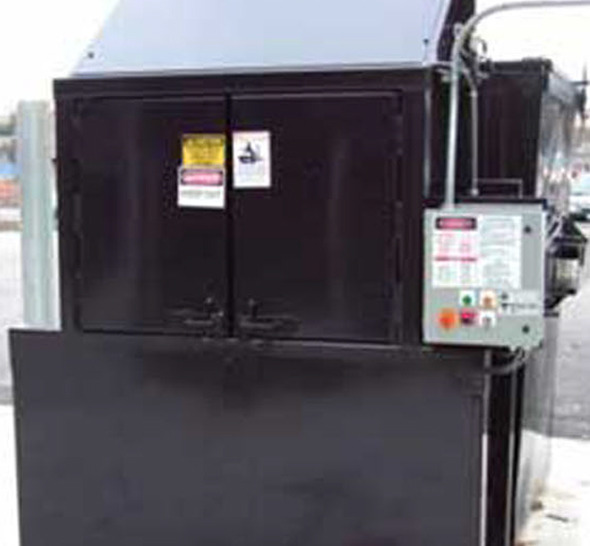

Control Panel Fully wired. Keyed start button, emergency stop, full lights, reset button, PLC, current sensor
Power 208/575 Volt-3 Phase, 115/230 Volt-Single Phase

Optional Equipment

  • Advance-warning light
  • Fluid-filled pressure gauge
  • Oil heater
  • Odour control system

Electrical system upgrades

  • System monitor: SCADA panel (add-on panel or integrated upgrade) provides cell-based monitoring of all systems including container fullness, safety circuit devices, container positioning, hydraulic system devices including reservoir fullness, oil temperature and system in-use time
  • Remote start/stop station
  • Auto-start system (photo-eye or sonic sensor)
  • Wireless remote control
  • Biometric interface
  • HMI based operator interface for tie into building monitoring systems

Hydraulic system upgrades

  • Single phase and three phase power units
  • Hi-lo hydraulic pumps for reduced cycle time applications
  • Regen circuit for improved hydraulic fluid circulation
  • Oversized oil reservoirs to accommodate ancillary devices and improved heat sink
  • Oil cooler for high duty cycle applications
  • Bio-degradable oil
  • In tank oil heater
  • Sonic sensors for oil fullness monitoring
  • Low temperature oil (as low as -60 Celsius is available)

Compactor upgrades

  • Custom chute systems
  • Custom weather enclosures
  • Drive-on deck systems (certified up to 20,000 lbs.)
  • Tongue and grooved floor designs
  • AR plate floors and sides for reduced press head/compactor shell wear
  • Pad-less set-up for installation on asphalt
  • Custom hydraulic cart tipping systems
  • Light curtain-based safety sensors
  • Custom steel safety barriers
  • Custom hydraulic lift systems
